Accessing the Media API from Flex in AS3

This article describes how to access the Brightcove 3 Media API using Flex 2 or 3 with ActionScript 3. It also shows how to easily use the returned data as a datasource for a grid view and deals with date conversion from and to the API. Use of Adobe Flex Builder 2 or 3 is optional.

The basics of what the Media API is and how it works are covered in the Media API Getting Started topic in the Brightcove documentation. If you haven't read it already, do so before continuing here.

The basic Media API request

Method calls using REST are basically HTTP GET requests(for read methods) or POST requests (for write methods) to a particular URL on Brightcove's servers. The request includes the name of the method you're calling, together with its input arguments, which are passed as parameters in the URL. The body of the HTTP response contains the results of the HTTP call as a JSON string.

Method calls also require a token. Tokens are issued to accounts by Brightcove and give you access to your account using the API. Read about how to get your tokens.

There are separate tokens for read methods and write methods in the API. You append your token to the call as a URL parameter, token=<tokenString>, where tokenString is your URL-encoded token.

Note: Media API tokens generally end with one or more dots (.). Be sure to include the dots when you use the API tokens – it's easy to lose them when you cut and paste.

For example, to retrieve all videos in your account, make an HTTP request that looks like:

http://api.brightcove.com/services/library?command=find_all_videos&token=0Z2dtxTdJAxtbZ-d0U7Bhio2V1Rhr5Iafl5FFtDPY8E.

This is a raw method call. What comes back is unprocessed and unformatted. In the examples, you'll see ways to take the returned data and shape it in ways that are useful for an application. (Note: This call uses a demo account. To use your own account, substitute your own token.)

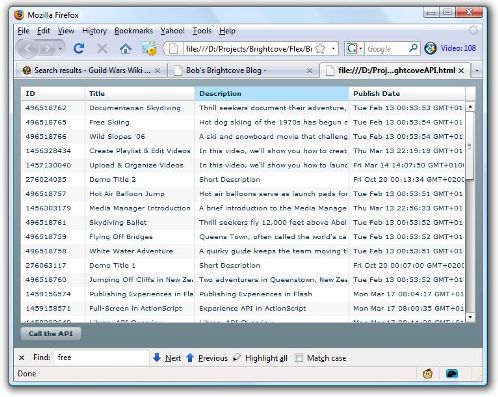

In this example we're going to be making a Media API request, parsing it, and populating a datagrid, as shown in this screenshot:

JSON in AS3?

There is no standard ActionScript function set for parsing JSON, so we'll be using an open source AS3 library found on Google Code called CoreLib. You can find the library, source, and documentation here: http://code.google.com/p/as3corelib

Setting up

Start a new Flex project called BrightcoveAPI and make sure you include a reference to the CoreLib library. The first thing we're going to do is define your tokens and the service URI for the Media API in a code segment within the Flex Application:


<!--[CDATA[
    private var ReadToken: String = "your-read-token-here";
    private var WriteToken: String = "your-write-token-here";
    private var ServiceURL: String = "http://api.brightcove.com/services/library";
 ]]-->

Now we'll create a Button, DataGrid and a ButtonClick handler to handle the REST API request and returned values to demonstrate the principle of a complete call. We'll add one of the date fields to show "conversion" from UNIX to AS3. Actually, AS3 uses the same internal notation as UNIX time codes, but the numeric value will be parsed as a string by the CoreLib JSON functions.

Making the API Call

We'll use the same API call as the one in the raw call example before. It's very simple to turn into AS3 code and attach it to the Button Click handler:


private function ButtonCallAPIClick(): void
	{
   	    	var request:URLRequest = new URLRequest(ServiceURL);
	       	var loader:URLLoader = new URLLoader();
	      	loader.dataFormat = URLLoaderDataFormat.TEXT;
	      	request.method = URLRequestMethod.GET;

	     	//Define the REST API variables to be passed
	     	var variables:URLVariables = new URLVariables();

	     	// First, Add your read token
	     	variables.token = ReadToken;

	     	// Add the command you want to execute
	     	variables.command = "find_all_videos";

	     	// assign the data to be sent by GET
	     	request.data = variables;

	     	// add event listener
	     	loader.addEventListener(Event.COMPLETE, handleResults);
	     	loader.load(request);
}

This is the basic template you can use for any Media API call. Simply replace the variables.command value with the command string you want to call, and add the required variables for the API function you are calling.

Parsing the JSON return string

We defined an event listener when the loader for the API call is complete called handleResults. In this listener, we can use the CoreLib JSON parser to convert the returned JSON string into AS3 objects:


private function handleResults(evt:Event):void {
	//Get the returned JSON data string
	var response:String = evt.target.data as String;

	//Uncomment this if you want to see the raw response string
	//Alert.show(response);

	//The list of returned videos is embedded in the "items" property
	//of the root JSON object, so we will decode to a container
	var container:Object = (JSON.decode(response) as Object);

	//create a new ArrayCollection passing the de-serialized Array
	//ArrayCollections work better as DataProviders, as they can
	//be watched for changes.
	var dp:ArrayCollection = new ArrayCollection(container.items);

	//Convert the UNIX date into an AS3 Date
	for(var i:int = 0; i< dp.length; i++) {
			var video:Object = dp.getItemAt(i);
			var n:Number = video.publishedDate;
			video.publishedDate = new Date(n);
	}

	//pass the ArrayCollection to the DataGrid as its dataProvider.
	GridVideos.dataProvider = dp;
}

A little more explanation may be required here, so let's go over this piece step by step. First, we tell Flex that the return data from the listener invoke is a string:

var response:String = evt.target.data as String;

Then we convert this string into an object using the JSON parser. If you look at the raw data output from the URI we mentioned in the REST section, you'll see that the videos are actually embedded in a container object:

{"items":[{"creationDate":"1171267200000","economics":"FREE","id":496518762,
"lastModifiedDate":"1171324536445","length":111077,"linkText":null,"linkURL":null,
"longDescription":null,"playsTrailingWeek":2,"publishedDate":"1171324433253",
"referenceId":"title006"...

So we mimic this in AS3:

var container:Object = (JSON.decode(response) as Object);

To be able to use the list of videos directly as a Data Source for grids and lists, we need to convert it into an ArrayCollection. We can get rid of the container as well:

var dp:ArrayCollection = new ArrayCollection(container.items);

And now we can access all videos in this collection through the items property. As mentioned, AS3 uses the same internal notation as UNIX time codes, the JSON.decode() method has actually parsed these numeric values as a string. So we need to loop through these and type them as AS3 Date values:

for(var i:int = 0; i< dp.length; i++) {
  var video:Object = dp.getItemAt(i);
  var n:Number = video.publishedDate;
  video.publishedDate = new Date(n);
}

Finally, we can pass this Array Collection as a DataSource to the grid:

GridVideos.dataProvider = dp;

And that's it!
